LU/LA Elevators

Elvoron LU/LA Elevator

Based in the Dallas - Fort Worth Metroplex, we offer a limited use/limited application elevator available across North Texas.
Ideal for schools, places of worship, offices, and community facilities, the Elvoron LU/LA is a cost-effective solution for vertical access up to 25 feet.
View Technical Specifications

Engineered for Safety & Reliability

The Elvoron LU/LA is engineered with commercial-grade components and safety systems, ensuring reliable daily operation for public use.
Key Features:
  • Rated load: 1,400 lbs (635 kg)
  • Travel range: up to 25 ft (7.6 m)
  • Speed: 30 fpm (0.15 m/s) standard | 40 fpm (0.2 m/s) optional
  • Overhead clearance: MRL – 138” (111” with prop) | Hydraulic – 135” (108” with prop)
  • Fully automatic push-button controls with integrated self-diagnostics
  • Two-speed horizontal sliding car and hoistway doors (36” x 80”)
  • Safety brake systems:
  • Hydraulic: instantaneous brake + overspeed valve
  • MRL: bi-directional safety brake + overspeed governor
  • Emergency battery lowering system and manual lowering valve
  • Automatic bi-directional floor leveling
  • Stop key switch and alarm button in car
  • Full-height photoelectric door sensors
  • Audio/visual direction indicators with braille-marked controls
  • Integrated hands-free telephone
  • UL/CSA certified components
  • 2-year standard warranty with optional extended coverage up to 7 years

Drive System Options

The LU/LA is available with two smooth, reliable drive options:

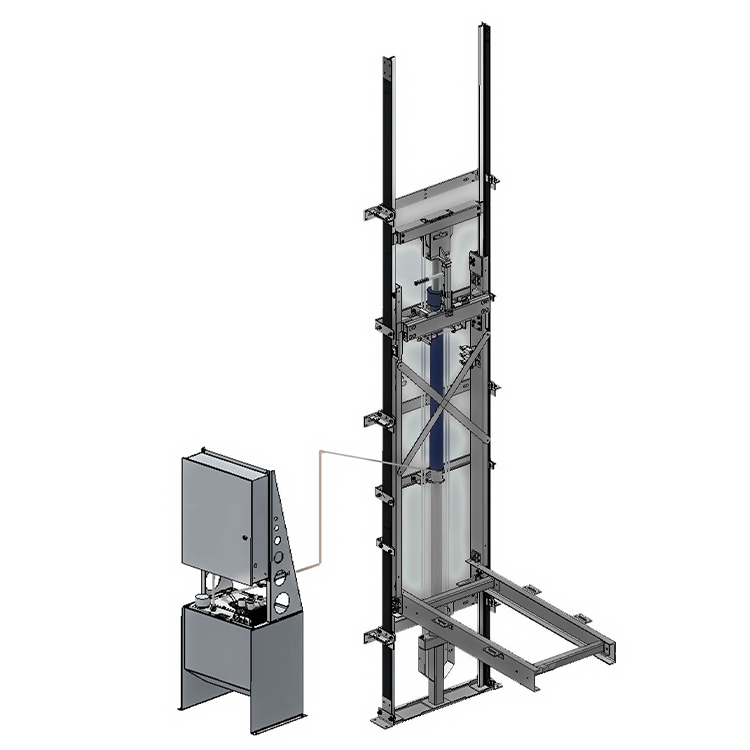

Hydraulic Drive System (Traditional & Proven):
LULA Hydraulic Drive
  • 1:2 cable hydraulic drive with two-speed valve for smooth ride quality
  • Submersed hydraulic pump & motor for quiet operation
  • Automatic leveling, emergency manual lowering, and instantaneous safety brake system
  • Minimum pit depth: 14” (356 mm)
  • Overhead clearance: 135” (108” with car top prop)
  • Power supply: 208 VAC three phase standard | 230 VAC single phase optional | Lighting: 110 VAC single phase

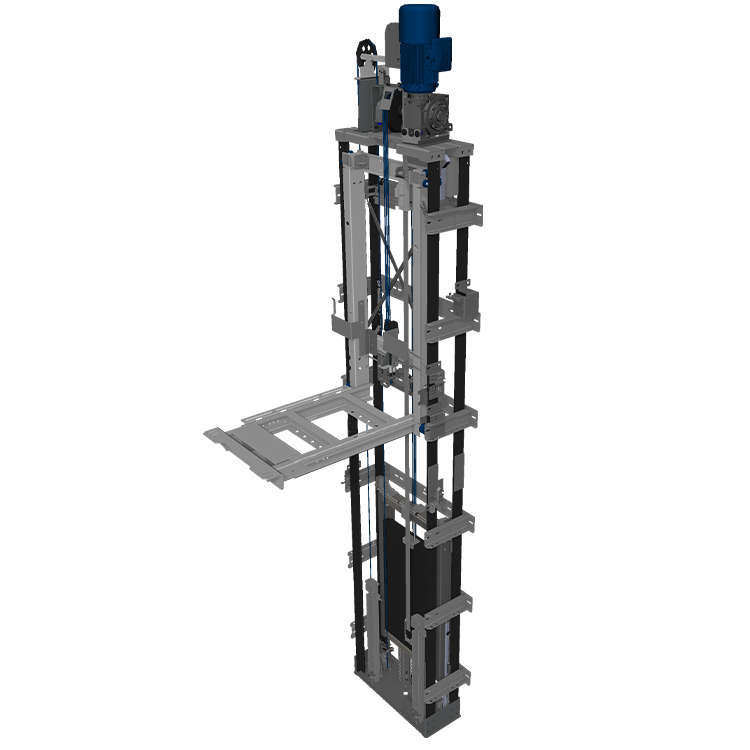

Machine Room-Less (MRL) Traction Drive (Space-Saving & Eco-Friendly):
LU/LA Electric Drive elevator. Cost-effective commercial lift alternative to a full home elevator. Servicing DFW, Texas.
  • Geared traction drive eliminates the need for a machine room
  • 1:1 counterweight traction with direct drive gearbox
  • Smooth, quiet operation with PLC controller and backup power for lowering
  • No hydraulic fluid required — environmentally friendly
  • Minimum pit depth: 17” (432 mm)
  • Overhead clearance: 138” (111” with car top prop)
  • Power supply: 208 VAC three phase standard | 230 VAC single phase optional | Lighting: 110 VAC single phase

Design Options & Finishes

The Elvoron LU/LA can be customized to match your building’s design.
Cab & Door Finishes:
  • Car doors finished to match cab wall trim
  • Hall doors primed for field painting or optional stainless steel finish
  • Interior cab panels available in custom materials and colors
  • Optional RAL color finishes for doors and cab components
Lighting & Fixtures:
  • Four recessed low-voltage LED ceiling lamps (white, stainless, or custom ceiling designs)
  • Chrome lamp trim optional
  • Braille-marked controls and illuminated push buttons
  • Commercial-grade fixtures in brushed stainless steel standard
  • Optional additional handrails for passenger support

LU/LA Elevator Cost Considerations

The cost of a LU/LA elevator depends on project-specific factors such as:
  • Drive system (hydraulic vs. traction MRL)
  • Travel distance (up to 25 ft)
  • Custom cab finishes and door materials
  • Installation requirements and site conditions
  • Optional features such as fireman’s service (Phase 1), keyed hoistway access, buffer springs, or phone monitoring
For an accurate estimate, our team provides complimentary project-specific quotes tailored to your building’s needs.
Request a Project Estimate

LU/LA Elevator FAQs

LU/LA elevators are designed for limited-use commercial spaces such as schools, churches, libraries, offices, and community centers.
LU/LA elevators are restricted by code to a maximum of 25 ft of travel and a 1,400 lb capacity. They look and operate like a full passenger elevator but at a lower cost and with fewer construction requirements.
Yes. Garaventa LU/LA elevators comply with ADA standards and ASME A17.1/CSA B-44 Section 5.2 for accessibility in public buildings.
Each LU/LA includes a 2-year standard manufacturer’s warranty, with optional extensions up to 7 years.
The MRL traction model eliminates the need for a machine room, while the hydraulic version includes a compact machine room at the lowest level.
